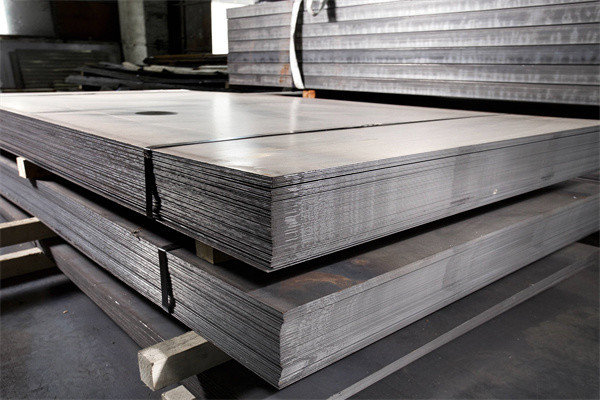

Electrical Silicon Steels Foil Metal Sheet For Transformer M350-50A

Place of Origin Shandong China
Brand Name TESTE
Certification ISO TUV SGS BIS CE
Minimum Order Quantity 3Tons
Price Negotiate
Packaging Details With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time 5-15days depend on the quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability 5000Tons Per Months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Non-Oriented Electrical Steel (NOES) Coil/Strip Grade M350-50A
Core Loss Max. At 3.5 Density 7.65
Product Name Alloy Steel Sheet High Light Pipe
High Light

silicon steel for transformer

,

silicon electrical steel

,

silicon steel metal sheet

Leave a Message
Product Description
Grade M350-50A Non-Oriented Electrical Steel (NOES) Coil/Strip
silicon STEEL

Electrical steel, also called lamination steel, silicon electrical steel, silicon steel or transformer steel, is specialty steel tailored to produce certain magnetic properties, such as a small hysteresis area (small energy dissipation per cycle, or low core loss) and high permeability.



EQUIVALENT GRADE OF M350-50A

ASTM

DIN  EN 10106

JIS C2552

GB/T2521.1

GOST 21427.2

47F200 1.0810 50A350 50W350 2411



MECHANICAL PROPERTIES



Tensile test according to DIN EN ISO 6892-1 and hardness according to DIN EN ISO 6507-1 (Typical values);

Test direction: Transverse



M350-50A Yield Strength(MPa) 0.2%Yield Strength(MPa) Tensile Strength(MPa)

Elongation

A50(%)

Hardness

HV5

325 310 470 32 165


GRADE

Thinckness Standard Grade
Nominal thickness: 0.35 mm EN 10027-1 M235-35A
M250-35A
M270-35A
M300-35A
M330-35A
Nominal thickness: 0.50 mm M250-50A
M270-50A
M290-50A
M310-50A
M330-50A
M350-50A
M400-50A
M470-50A
M530-50A
M600-50A
M700-50A
M800-50A
M940-50A
Nominal thickness: 0.65mm M310-65A
M330-65A
M350-65A
M400-65A
M470-65A
M530-65A
M600-65A
M700-65A
M800-65A
M1000-65A
Nominal thickness: 1.00 mm M600-100A
M700-100A
M800-100A
M1000-100A
M1300-100A
