Prime Hot Dipped Galvanized Steel Coils Sheet Prepainted Galvalume JIS SGCC SGCD

Place of Origin Shandong China
Brand Name TESTE
Certification ISO TUV SGS BIS CE
Minimum Order Quantity 3Tons
Price Negotiate
Packaging Details With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time 5-15days depend on the quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability 5000Tons Per Months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Galvanized Steel Sheet Standard ASTM,AISI,JIS,GB, DIN,EN
Type Hot-dip Galvanized Width 580~1250mm
Product Name Alloy Steel Coil High Light Pipe
High Light

hot dipped galvanised coil 580 1250mm

,

prepainted galvalume steel coil 580 1250mm

,

prime hot dipped galvanized steel sheet in coils 580 1250mm

Leave a Message
Product Description

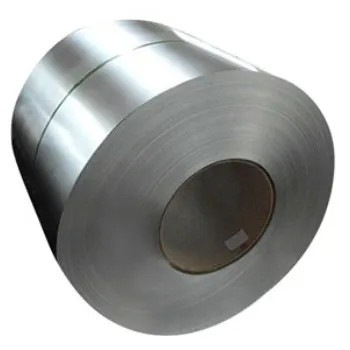

JIS SGCC/SGCD Hot-Dip Galvanized Steel Sheet

galvanized steel

Galvanized Steel Sheet is defined as a carbon steel sheet coated with zinc on both sides. Galvanized Steel Coil Importer produce galvanized steel with two main processes: continuous hot dip galvanizing and electro-galvanizing.



A zinc coating is one of the most effective and economical methods of protecting bare steel from a corroding environment. The zinc not only serves as a barrier between the steel and the environment, but it will also sacrifice itself to protect the underlying steel sheet. Sacrificial or galvanic protection occurs when two dissimilar metals are in contact and coupled with water and oxygen. Zinc corrodes preferentially to the iron in steel. This protection prevents corrosion of the steel at areas not covered with zinc. Thus, the spread of corrosion from cut edges, drill holes, etc. is minimized.



COATING

  Type Coating mass(g/m2) Plate thickness(mm) Width(mm)
Hot Dip Galvanized steel Hot-dip galvanealed steel sheet and coil/strips 30~120 0.5~4.5 580~1250
Hot-dip galvanized steel sheet and coil/strips 60~600 0.23~6.0 580~1250
Hot-dip zinc-aluminum-magnesium-silicon alloy coated steel sheet and coil/strips 60~275 0.27~9.0 580~1250
Hot-dip aluminum coated steel sheet and coil/strips 40~160 0.3~2.5 580~1250
Electrogalvanized steel Electrolytic zinc coated steel sheet and coil/strip 10~40 0.4~2.3 580~1250
Electrolytic zinc-nickkel coated steel sheet and coil/strip 10~40 0.4~2.3 580~1250



GRADE

DX51D+Z

DX52D+Z

DX53D+Z

S280GD+Z

S350GD+Z

S550GD+Z

DX51D+AZ

DX52D+AZ

DX53D+AZ

S280GD+AZ

S350GD+AZ

S550GD+AZ

DX51D+AZM

DX52D+AZM

DX53D+AZM

S280GD+AZM

S350GD+AZM

S550GD+AZM

SGHC

SGH400

SGCC

SGCH

SGCD

SGC400
