Asme Sa 106 Gr B Seamless Alloy Steel Pipe T1 T1a Boiler ASTM A213 Grade T122

Place of Origin Jiangsu,China
Certification ISO 9001 ,CE
Minimum Order Quantity 1 PCS
Delivery Time 7~10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month
Product Details
Product Name Alloy Steel Pipe Standard ASTM,ASME,API
Type Hot Rolled,Cold Drawn,NPS Pipe End Plain End,Beveled End,Treaded
High Light

asme sa209 t1 boiler tube ASTM A355 P21

,

asme sa209 t1a boiler tube ASTM A355 P21

,

asme seamless pipe ASTM A355 P21

Leave a Message
Product Description

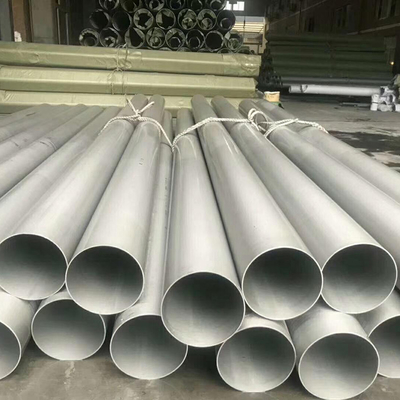

ASTM A213 Grade T122 Seamless Alloy Steel Pipe

ALLOY pipe

ASTM A213 is the standard specification for seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes. Grade : T2, T5, T5b, T5c, T9, T11, T12, T17, T21, T22, T23, T24, T36, T91, T92, T122, and T911. The tubing sizes and thickness usually furnished to this specification are 1/8″(3.2 mm) in inside diameter to 5″(127 mm) in outside diameter and 0.015″ to 0.500″(0.4-12.7 mm) in minimum or average wall thickness. ASTM A213 tubes of custom-diameter may be furnished, provided such tubes comply with all other requirements of the standard specification.



GRADE

Standard Low-Alloy Steel Grade
ASTM A213

T2     T5     T5b     T5c     T9     T11     T12     T17     T21     T22

T23   T24   T36     T91     T122  T911



CHEMICAL COMPOSITION

Element C Mn Si P S Cr Mo
T2 0.10~0.20% 0.30~0.61% 0.50~0.81% 0.025% 0.025% 0.50~0.81% 0.44~0.65%
T5 0.15% 0.30~0.60% 0.50% 0.025% 0.025% 4.0~6.0% 0.44~0.65%
T5b 0.15% 0.30~0.60% 1.00~2.00% 0.025% 0.025% 4.0~6.0% 0.44~0.65%
T5c 0.12% 0.30~0.60% 0.50% 0.025% 0.025% 4.0~6.0% 0.44~0.65%
T9 0.15% 0.30~0.60% 0.25~1.00% 0.025% 0.025% 8.0~10.0% 0.90~1.10%
T11 0.05~0.15% 0.30~0.60% 0.50~0.10% 0.025% 0.025% 1.0~1.5% 0.44~0.65%
T12 0.05~0.15% 0.30~0.61% 0.50% 0.025% 0.025% 0.8~1.25% 0.44~0.65%
T17 0.05~0.25% 0.30~0.61% 0.15~0.35% 0.025% 0.025% 0.8~1.25% -
T21 0.05~0.15% 0.30~0.60% 0.50~0.10% 0.025% 0.025% 2.65~3.35% 0.80~1.06%
T22 0.05~0.15% 0.30~0.60% 0.50% 0.025% 0.025% 1.9~2.6% 0.87~1.13%
T23 0.04~0.10% 0.10~0.60% 0.50% 0.03% 0.010% 1.9~2.6% 0.05~0.30%
T24 0.05~0.10% 0.30~0.70% 0.15~0.45% 0.02% 0.010% 2.20~2.60% 0.09~1.10%
T36 0.10~0.17% 0.80~1.20% 0.25~0.50% 0.03% 0.025% 0.30% 0.25~0.50%
T91 0.07~0.14% 0.30~0.60% 0.20~0.50% 0.02% 0.010% 8.0~9.5% 0.85~1.05%
T92 0.07~0.13% 0.70% 0.50% 0.02% 0.010% 8.5~9.5% 0.30~0.60%
T122 0.07~0.14% 0.30~0.60% 0.50% 0.02% 0.010% 10.0~11.5% 0.25~0.60%
T911 0.09~0.13% 0.30~0.60% 0.10~0.50% 0.02% 0.010% 8.5~9.5% 0.09~1.10%



ALLOYING ELEMENTS



The addition of Molybdenum (“Moly”) increases the strength of the steel and its elastic limit, enhance the steel resistance to wear, its impact qualities, and the hardenability. It also improves the resistance to softening, makes chromium steel less prone to embrittlement and prevents pitting.

Chromium, a key element also for stainless steel alloys, prevents steel oxidation at elevated temperatures and increases the resistance of steel to corrosion. It enhances the tensile, yield, and hardness properties of low-alloy pipes at room temperatures.
Other alloying elements, present in various degrees in pipes of all grades are:

  • Aluminum: decreases oxygen from steelmaking
  • Boron: used to produce fine grain size and enhance steel hardness
  • Cobalt: used to enhance the steel’s heat and wear-resistance
  • Manganese: gives better steel hardenability
  • Nickel: Enhances toughness, hardenability and impact strength at low temperatures
  • Silicon: decreases oxygen, enhances hardenability and toughness
  • Titanium: prevents precipitation of chromium carbide
  • Tungsten: refines steel grain size and enhance the steel hardness, especially at high temperatures
  • Vanadium: gives steel enhanced fatigue resistance



As mentioned, low-alloy steels have a total amount of alloying elements below 5%; high alloy steel has a higher percentage of these elements.
