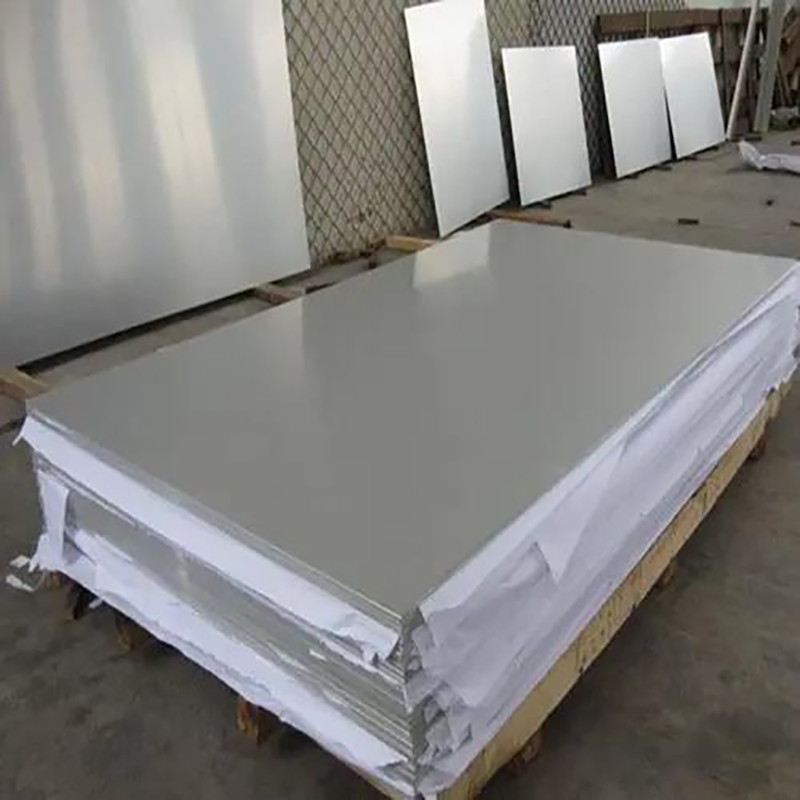

MONEL nickel-copper alloy R-405 (UNS N04405) sheet

  • MONEL nickel-copper alloy R-405 (UNS N04405) sheet
  • MONEL nickel-copper alloy R-405 (UNS N04405) sheet
Place of Origin Jiangsu,China
Certification ISO 9001 ,CE
Minimum Order Quantity 1 Coil
Delivery Time 7~10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Non-Oriented Electrical Steel (NOES) Coil/Strip Grade Monel 405
Condition Hot Rolled/cold Drawn/Annealed Density 8.8
High Light

EN 10106 Silicon Steel Coil

,

M350-65A Silicon Steel Coil

,

EN 10106 Non oriented Steel Coil
Leave a Message
Product Description

MONEL 405 UNS N04405

MONEL R405 is a Nickel-Copper alloy, resistant to sea water and steam at high temperatures as well as to salt and caustic solutions.
MONEL R405 is a nickel-copper alloy with excellent corrosion resistance in a wide variety of media. MONEL R405 is characterized by good general corrosion resistance and moderate to high strength. MONEL R405 has been used in a variety of applications. It has excellent resistance to rapidly flowing brackish water or seawater. It is particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated. MONEL R405 is slightly magnetic at room temperature. MONEL R405 is widely used in the chemical, oil and marine industries.



MONEL 405CHEMICAL COMPOSITION

Type C Cu Fe Mn Ni S Si
Monel 405 0.3%Max 28.0%~34.0% 2.5%Max 2.0%Max 63.0%Min 0.025~0.06% 0.5%Max



ALLOY 405 MECHANICAL CHARACTERISTICS

Type Density Melting Point Tensile Strength Yield Strength(0.2% Offset) Elongation
Monel 405 8.8g/cm3 1350℃(2460℉) Psi-80000,Mpa-550 Psi-35000,Mpa-240 40%



MONEL 405APPLICATION

Electrical and Electrical Components Feed Water and Steam Generator Tubing Heat Exchangers Marine Fixtures Propeller and Pump Shafts Pumps and Valves Sulfuric Acid and Hydrofluoric Tanks Transfer Piping from Oil Refinery Crude Columns Valves.



MONEL 405 FEATURES

Corrosion Resistant in a Variety of Marine and Chemical Environments Excellent Resistance to Chloride Ion Stress Corrosion Cracking Good Mechanical Properties from Sub-Zero Temps to 480° C.



MONEL 405 SHAPE AVAILABLE

Round Bar – Hex Bar – Flat Bar – Square Bar – Tubing – Pipe – Coil – Wire – Sheet – Plate
