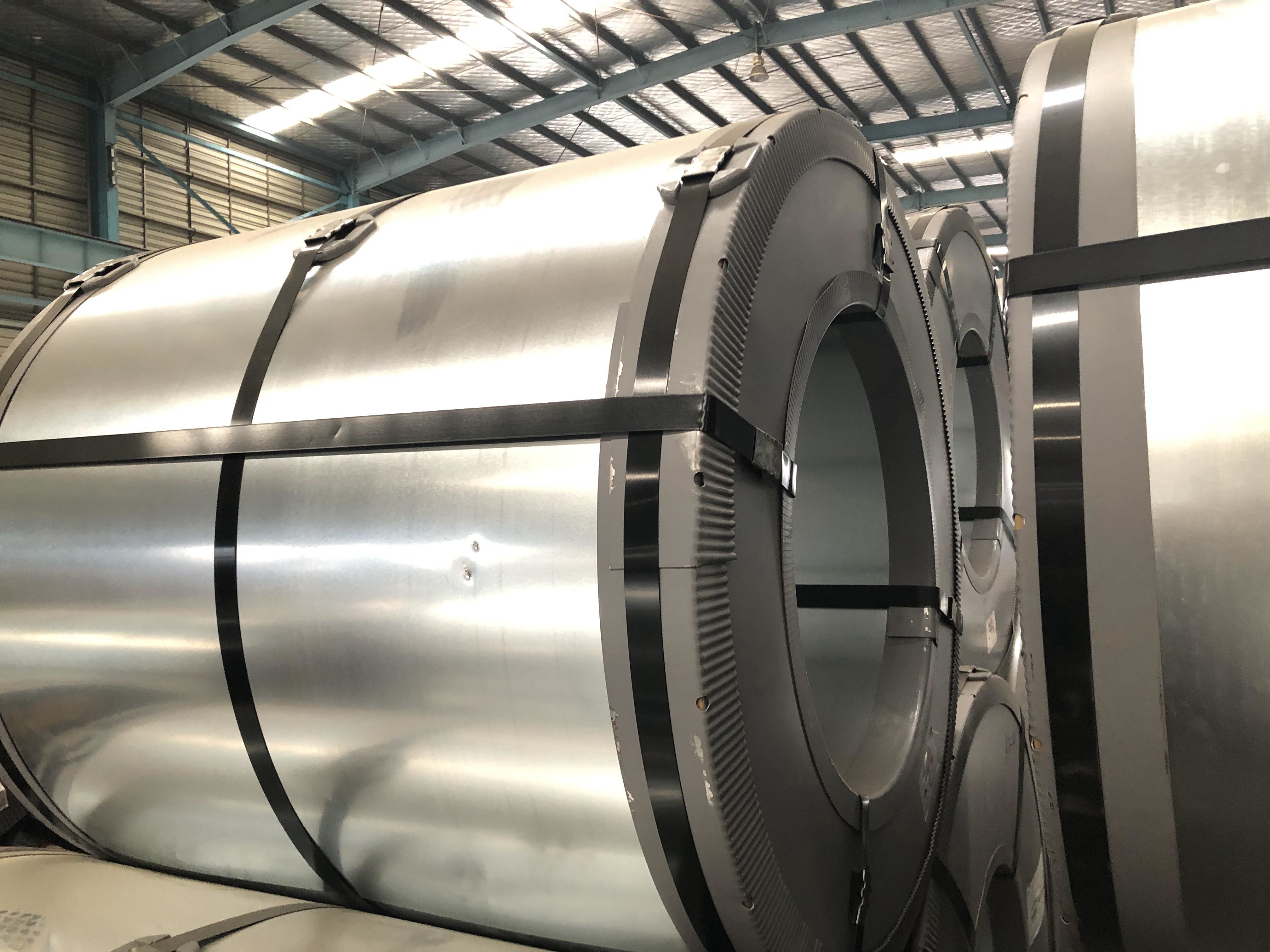

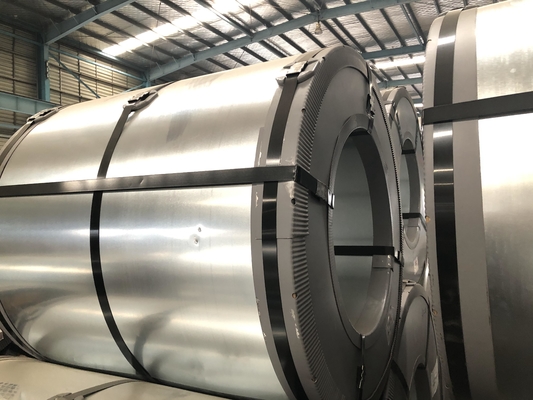

Skin Pass Low Carbon Steel Coil Galvanized EN 1030 Grade DC04 SPCE

Place of Origin Jiangsu,China
Certification ISO 9001 ,CE
Minimum Order Quantity 1 Coil
Delivery Time 7~10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month
Product Details
Product Name Cold Rolled Carbon Steel Coil Delivery Conditon HR,CR,AR,Q+T,N+T,N,TMCP,UT,Z Direction
Thickness 0.3mm~3.2mm Width 1500mm/2200mm/2500mm
High Light

skin pass coil

,

Carbon Steel Coil galvanized EN 103

,

Low Carbon Steel Coil Grade DC04

Leave a Message
Product Description
dc04(1.0338) CARBON STEEL coil

Grade DC04 is a deep-drawing steel of the DC grade family. The grade has excellent deep-drawing properties under all types of deformation. DC04 is suitable for high forming requirements.



DC04 Meaning and Definition
D: (Drawing) flat products for cold forming
C: Cold rolled
DC01(1.0330 material): Drawing quality
DC03(1.0347 material): Deep drawing quality;
DC04(1.0338), DC05(1.0312): Special deepdrawing quality;
DC06(1.0873 material): Extra deepdrawing quality;
DC07(1.0898 material): Super deep drawing quality.



EQUIVALENT GRADE OF DC04

USA ASTM

Germany DIN

China GB /T5213

Japan JIS G3141

A619DDS DC04(1.03308)/ST14 DC04 SPCE



CHEMICAL COMPOSITION

Element C Mn P S Si
DC01 0.12% 0.60% 0.045%  0.045% -
DC04 0.08% 0.40% 0.03% 0.03% -
DC05 0.06% 0.35% 0.025% 0.025% 0.03%
DC06 0.02% 0.25% 0.020% 0.020% 0.03%


COMMON GRADE OF COLD ROLLED CARBON STEEL

Standard  Grade

EN 10130

DC01,DC03,DC04,DC05,DC06,DC07

EN 10209

DC01EK,DC04EK,DC06EK,DC03ED,DC04ED,DC06ED

ASTM A1008 / A1008M

CS,DS,DDS,EDDS,SFS
DIN 1623

st12,st13,st14,st15,

JIS G3141

SPCC,SPCD,SPCE

... ...
