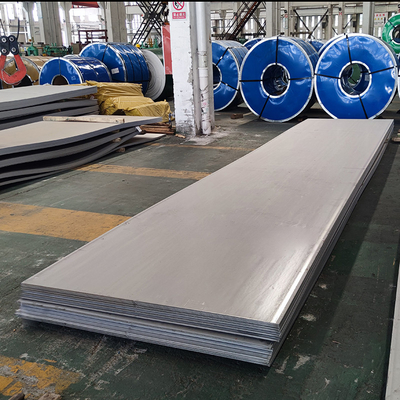

443 Aisi 304 Mirror Finish Stainless Steel Sheet Metal 4' X 8' 48 X 96 1/4 Inch
Product Name | Stainless Steel Sheet | Type | Cold Rolled,Hot Rolled |
---|---|---|---|
Surface | No.1,2D,2B,BA,No.4,8k,Tempered | Thickness | 0.4mm~6mm |
High Light | aisi 304 stainless steel sheet,stainless steel sheet metal 1/4 inch,stainless steel sheet metal 48 x 96 |
Grade 443 Stainless Steel Sheet
400 SERIES STAINLESS STEEL
The 400 series group of stainless steels typically have an 11% chromium and 1% manganese increase, above the 300 series group. This stainless steel series tends to be susceptible to rust and corrosion under some conditions although heat-treating will harden them. The 400 series of stainless steels have a higher carbon content, giving it a martensitic crystalline structure that provides the end product with high-strength and high-wear resistance. The 400 series steels tend to be used in agricultural equipment, gas turbine exhaust silencers, hardware, motor shafts, and more.
Stainless steel 443, which is a kind of ferritic stainless steel, is now generally used to replace 304. Its rust resistance and processing performance are comparable to those of 304. It is currently widely promoted in the fields of electrical appliances, utensils, kitchen equipment, elevators, and oven making.
CHEMICAL COMPOSITION
Element | C | Mn | Cr | Ni | P | S | Si |
409 | 0.03% | 1.00% | 10.5~11.7% | 0.50% | 0.04% | 0.02% | 1.00% |
410 | 0.08~0.15% | 1.00% | 11.5~13.5% | 0.75% | 0.04% | 0.03% | 1.00% |
420 | 0.15% | 1.00% | 12.0~14.0% | - | 0.04% | 0.03% | 1.00% |
430 | 0.12% | 1.00% | 16.0~18.0% | 0.75% | 0.04% | 0.03% | 1.00% |
443 | 0.02% | 1.00% | 18.0~23.0% | 0.50% | 0.04% | 0.03% | 1.00% |
MECHANICAL PROPERTIES
Grade |
Tensile Strength (MPa) Min |
Yield Strength 0.2% proof (MPa) Min |
Elongation (%in 50mm) Min |
Brinell(HBW) |
443 |
517
|
615 | 32 | 434 |
443 COMMON APPLICATIONS
The typical applications of grade 443 stainless steels are listed below:
- architectural decoration
- home appliance products
- vehicle parts
