Astm 304 2b Stainless Steel Sheet Plate 1mm 3mm Thick Factory Price in China

Place of Origin Shandong China
Brand Name TESTE
Certification ISO TUV SGS BIS CE
Model Number 304.316.316L
Minimum Order Quantity 3Tons
Price Negotiate
Packaging Details With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time 5-15days depend on the quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability 5000Tons Per Months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Stainless Steel Sheet Type Cold Rolled,Hot Rolled
Surface No.1,2D,2B,BA,No.4,8k,Tempered Thickness 0.4mm~6mm
Product Name Stainless Steel Sheet Plate Name Astm 304 2b Stainless Steel Sheet Plate 1mm 3mm Thick Factory Price In China
High Light

stainless steel plate 1mm 1200 x 600

,

astm 304 stainless steel sheet 1200 x 600

,

14 gauge 304 stainless steel sheet 1200 x 600

Leave a Message
Product Description

Grade 316L Stainless Steel Sheet

316(1.4401)/316L(1.4404)/316LN(1.4406) STAINLESS STEEL



The main difference between AISI 316 (1.4401) stainless steel and AISI 316L (1.4404) stainless steel is the carbon content. The "L" stands for "low carbon" content.

Due to the lower carbon amount, AISI 316L (1.4404) stainless steel has a reduced risk of sensitization (grain boundary carbide precipitation). Yet, at the same time, it loses some of its strength.

AISI 316LN (1.4406) stainless steel is alloyed with nitrogen to compensate for the loss of strength.

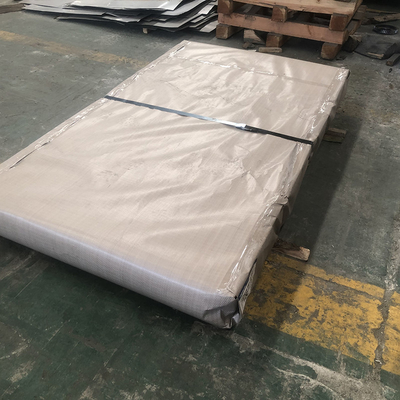

Astm 304 2b Stainless Steel Sheet Plate 1mm 3mm Thick  Factory Price in China 0

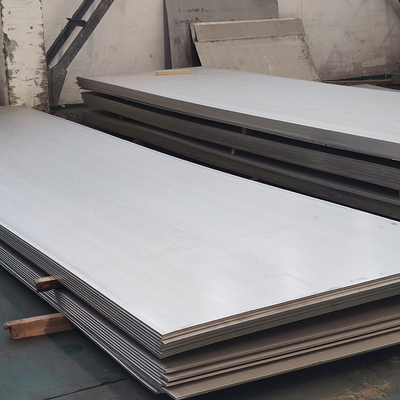

Astm 304 2b Stainless Steel Sheet Plate 1mm 3mm Thick  Factory Price in China 1

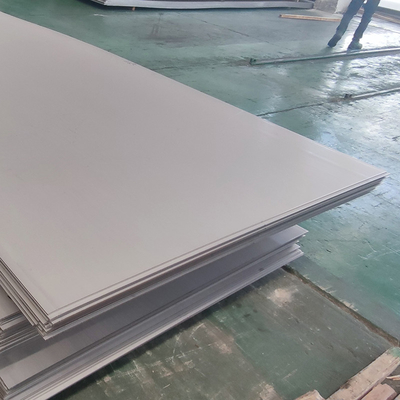

Astm 304 2b Stainless Steel Sheet Plate 1mm 3mm Thick  Factory Price in China 2

CHEMICAL COMPOSITION

Element C Mn Si P S Cr Ni N Fe
316 0.07% 2.0% 1.00% 0.045% 0.03% 16.5~18.5% 10.0~13.0% 0.11% Remainder
316L 0.03% 2.0% 1.00% 0.045% 0.02% 16.5~18.5% 10.0~13.0% 0.11% Remainder
316LN 0.03% 2.0% 1.00% 0.045% 0.015% 16.5~18.5% 10.0~12.5% 0.12~0.22% Remainder



MECHANICAL PROPERTIES

Grade

Tensile Strength

(MPa)



Yield Strength

(MPa)Min



Density

(g/cm3)

Brinell

(HB)Max

316 500~700 200 8 215
316L 520~680 220 8 215
316LN 580~780 205 8 220



316/316L/316LN COMMON APPLICATIONS

  • Aerospace Structures
  • Base plates
  • Food processing equipment
  • Brewery equipment
  • Pulp and paper processing equipment
  • Oil & petroleum refining equipment
  • Chemical transportation containers
  • Soap and photographic handling equipment
  • Textile Industry Equipment
  • Architectural
  • Pharmaceutical processing equipment
  • Laboratory benches & equipment
  • Boat fittings
  • Heat exchangers
