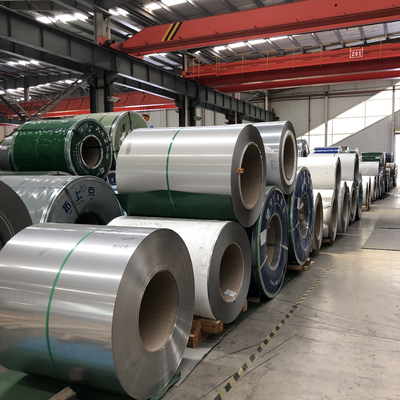

321 409 410 Custom Stainless Steel Coil Strip Cut To Size For Doors

Place of Origin Shandong China
Brand Name TESTE
Certification ISO TUV SGS BIS CE
Minimum Order Quantity 3Tons
Price Negotiate
Packaging Details With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time 5-15days depend on the quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability 5000Tons Per Months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Stainless Steel Coils/Strips Type Cold Rolled,Hot Rolled
Surface No.1,2D,2B,BA,No.4,8k,Tempered Thickness 0.4mm~6mm
Product Name Stainless Steel Coil Strip High Light .
High Light Pipe Name Pipe
Name Coil
High Light

321 stainless steel coil

,

409 stainless steel coil

,

410 stainless steel coil

Leave a Message
Product Description

Grade 204 Cu Stainless Steel Coils/Strips

200 SERIES STAINLESS STEEL



200 Series stainless steels are not new – In fact they have been around for many years. To date they have traditionally not proved very popular outside the USA. However, since they have a much lower Nickel content than 300 Series Austentics, the very high Nickel price over recent years has led to significantly more interest. Equally, stainless steel producers have an ongoing programme of development designed to enhance existing grades and produce new grades. These new grades are sometimes developed for specific end uses and sometimes to improve upon an existing grade.



DESIGNATIONS


AISI 201 stainless steel corresponds to the following specifications:
UNS20100 / EN1.4372 / JIS SUS 201
AISI 201L stainless steel corresponds to the following specifications:
UNS20103 / EN1.4371
AISI 202 stainless steel corresponds to the following specifications:
UNS20200 / EN1.4373
AISI 204C stainless steel corresponds to the following specifications:
UNS20400 / EN1.4597

CHEMICAL COMPOSITION

Element C Mn Cr Ni Cu

AISI 201/UNS S20100

0.15%Max 5.50~7.50% 16.0~18.0% 3.50~5.50% -
AISI 202/UNS S20200 0.15%Max 7.50~10.0% 17.0~19.0% 4.00~6.00% -
UNS 20430/204 Cu 0.15%Max 6.50~9.0% 15.5~17.5% 1.5~3.5% 2.0~4.0%
UNS 20500 0.12~0.25% 14.0~15.5% 16.5~18.0%

1.0~1.75%

-



MECHANICAL PROPERTIES

Grade

Tensile Strength

(MPa)

Min

Yield Strength

(MPa)

Min

Elongation

(%in 50mm)

Min

200 series



655



310 40



200 Series COMMON APPLICATIONS



  • Furniture
  • Bins
  • Cookware & Serving Bowls
  • Window Channel Spacers
  • Safety Shoes (mid-sole protector)
  • Deep drawn kitchen equipment – e.g. Cookware & Sinks
  • Hose Clamps
  • Trailer Frames
  • Industrial Strapping
  • Railway Rolling Stock

There is also grade 201LN for welded constructions, structural uses and low temperature applications - Examples include sides & roofs of trains, liquified gas storage vessels, structural members/chassis of railway rolling stock, trucks & trailers, coal handling equipment
