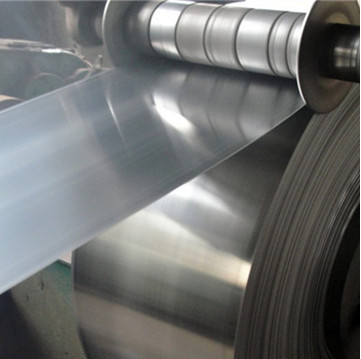

NOES Electrical Non Grain Oriented Silicon Steels Coil Strip Grade M250-50A

  • NOES Electrical Non Grain Oriented Silicon Steels Coil Strip Grade M250-50A
  • NOES Electrical Non Grain Oriented Silicon Steels Coil Strip Grade M250-50A
  • NOES Electrical Non Grain Oriented Silicon Steels Coil Strip Grade M250-50A
  • NOES Electrical Non Grain Oriented Silicon Steels Coil Strip Grade M250-50A
Place of Origin Jiangsu,China
Certification ISO 9001 ,CE
Minimum Order Quantity 1 Coil
Delivery Time 7~10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month
Product Details
Product Name Non-Oriented Electrical Steel (NOES) Coil/Strip Grade M250-50A
Core Loss Max. At 2.5 Density 7.6
High Light

cold rolled non oriented electrical steel

,

non oriented silicon steel

,

electrical steel coil
Leave a Message
Product Description
Grade M250-50A Non-Oriented Electrical Steel (NOES) Coil/Strip
silicon STEEL

Electrical steel, also called lamination steel, silicon electrical steel, silicon steel or transformer steel, is specialty steel tailored to produce certain magnetic properties, such as a small hysteresis area (small energy dissipation per cycle, or low core loss) and high permeability.



EQUIVALENT GRADE OF M250-50A

AISI

DIN  EN 10106

JIS C2552

 GB/T2521.1

GOST 21427.2
M-45 - 50A250 50W250 -



MECHANICAL PROPERTIES



Tensile test according to DIN EN ISO 6892-1 and hardness according to DIN EN ISO 6507-1 (Typical values);

Test direction: Transverse



M250-50A Yield Strength(MPa) 0.2%Yield Strength(MPa) Tensile Strength(MPa)

Elongation

A50(%)

Hardness

HV5
445 440 560 18 220


GRADE

Thinckness Standard Grade
Nominal thickness: 0.35 mm EN 10027-1 M235-35A
M250-35A
M270-35A
M300-35A
M330-35A
Nominal thickness: 0.50 mm M250-50A
M270-50A
M290-50A
M310-50A
M330-50A
M350-50A
M400-50A
M470-50A
M530-50A
M600-50A
M700-50A
M800-50A
M940-50A
Nominal thickness: 0.65mm M310-65A
M330-65A
M350-65A
M400-65A
M470-65A
M530-65A
M600-65A
M700-65A
M800-65A
M1000-65A
Nominal thickness: 1.00 mm M600-100A
M700-100A
M800-100A
M1000-100A
M1300-100A
