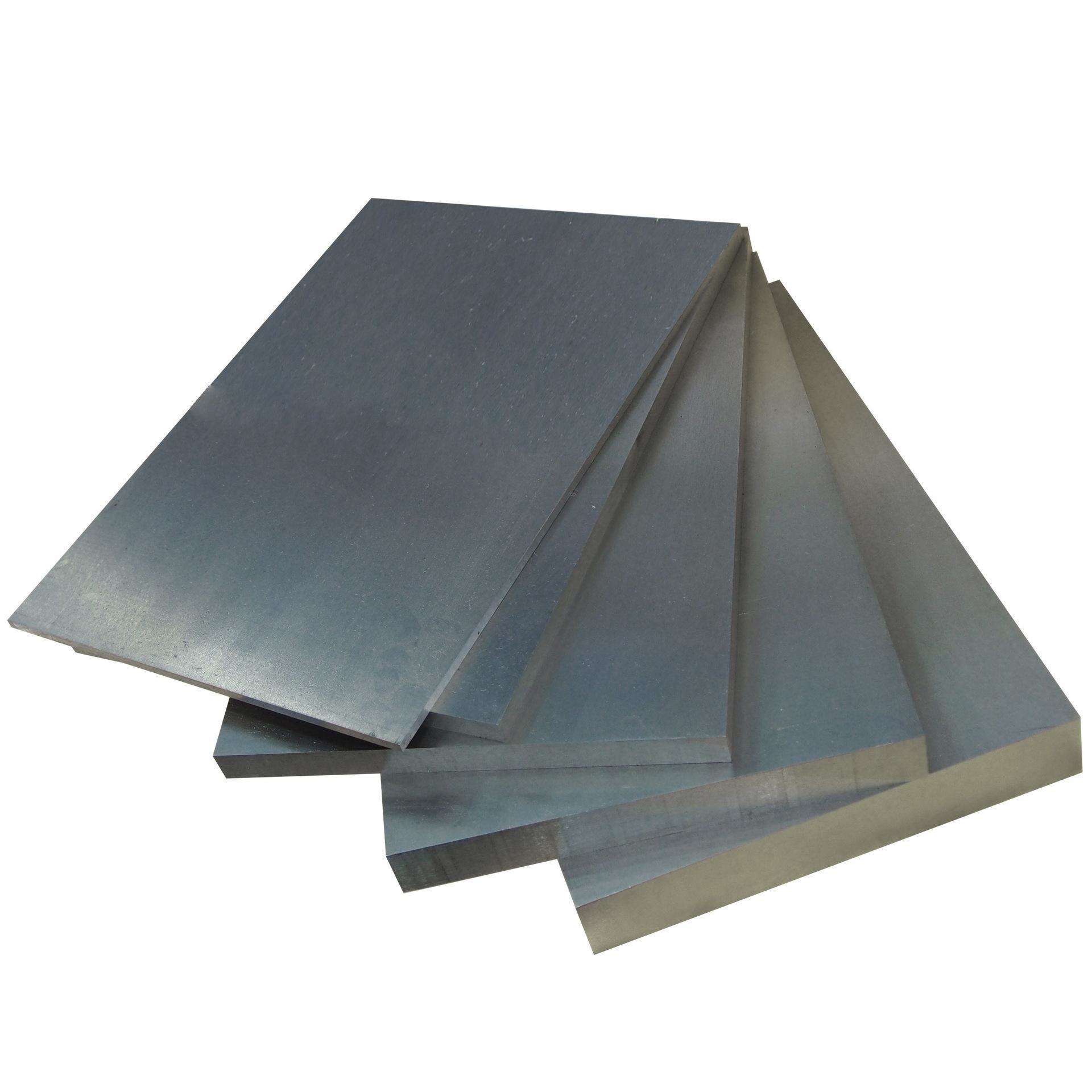

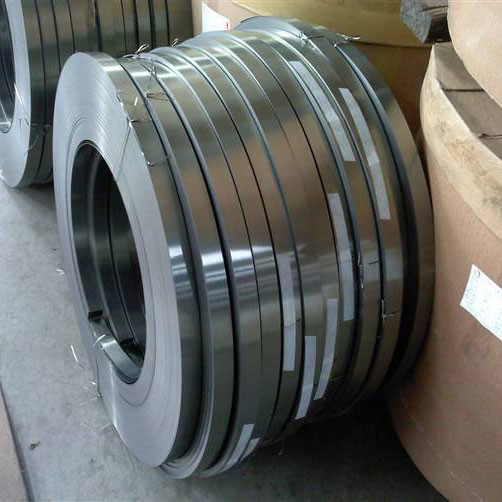

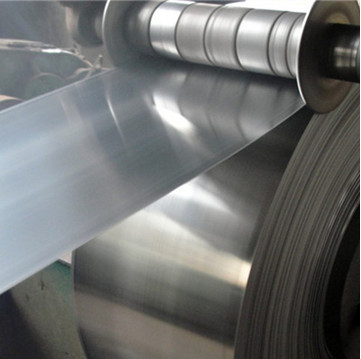

Grade M470-65 Non-Oriented Electrical Steel (NOES) Coil/Strip
| Place of Origin | Jiangsu,China |
|---|---|
| Certification | ISO 9001 ,CE |
| Minimum Order Quantity | 1 Coil |
| Delivery Time | 7~10 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5000 Ton/Tons per Month |
Product Details
| Product Name | Non-Oriented Electrical Steel (NOES) Coil/Strip | Grade | M470-65A |
|---|---|---|---|
| Core Loss Max. At | 4.7 | Density | 7.7 |
| High Light | silicon steel in transformers,silicon steel alloy,silicon steel plate |
||
Product Description
Grade M470-65 Non-Oriented Electrical Steel (NOES) Coil/Strip
silicon STEEL
Electrical steel, also called lamination steel, silicon electrical steel, silicon steel or transformer steel, is specialty steel tailored to produce certain magnetic properties, such as a small hysteresis area (small energy dissipation per cycle, or low core loss) and high permeability.
EQUIVALENT GRADE OF M470-65A
|
ASTM |
DIN EN 10106 |
JIS C2552 |
GB/T2521.1 |
GOST 21427.2 |
| 64F275 | 1.0823 | 65A470 | 65W470 | - |
MECHANICAL PROPERTIES
Tensile test according to DIN EN ISO 6892-1 and hardness according to DIN EN ISO 6507-1 (Typical values);
Test direction: Transverse
| M470-65A | Yield Strength(MPa) | 0.2%Yield Strength(MPa) | Tensile Strength(MPa) |
Elongation A50(%) |
Hardness HV5 |
| 350 | 330 | 490 | 33 | 170 |
GRADE
| Thinckness | Standard | Grade |
| Nominal thickness: 0.35 mm | EN 10027-1 | M235-35A M250-35A M270-35A M300-35A M330-35A |
| Nominal thickness: 0.50 mm | M250-50A M270-50A M290-50A M310-50A M330-50A M350-50A M400-50A M470-50A M530-50A M600-50A M700-50A M800-50A M940-50A |
|
| Nominal thickness: 0.65mm | M310-65A M330-65A M350-65A M400-65A M470-65A M530-65A M600-65A M700-65A M800-65A M1000-65A |
|
| Nominal thickness: 1.00 mm | M600-100A M700-100A M800-100A M1000-100A M1300-100A |
