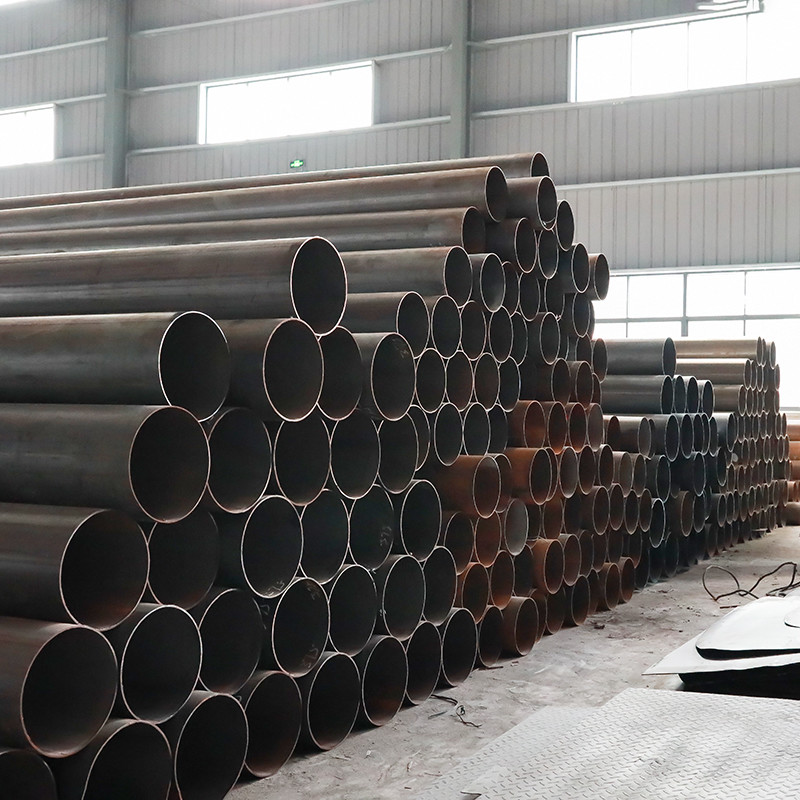

Natural Gas Carbon Steel Tubes Pipe ASTM A106 Gr C

Place of Origin Jiangsu,China
Certification ISO 9001 ,CE
Minimum Order Quantity 1 PCS
Delivery Time 7~10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month
Product Details
Product Name Carbon Steel Pipe Standard ASTM,ASME,API
Type Welded Pipe(ERW) Pipe End Plain End,Beveled End,Treaded
High Light

carbon steel gas tube

,

carbon steel tube pipe

,

gas carbon steel pipe

Leave a Message
Product Description
ASTM A106 Welded&Seamless Carbon Steel Pipe

A106 pipe is American standard material, including A, B, C three grades, the ingredients of A106 A is carbon and silicon, the tensile strength grade is 330 MPa. The ingredients of A106 B is carbon,manganese and silicon, the tensile strength grade is 415 MPa. The ingredients of A106 C is carbon, manganese and silicon components, the tensile strength grade is 485 MPa.



MECHANICAL PROPERTIES

Seamless&Welded Tensile Strength Yield Strength

A106 Grade A

330MPa

205MPa

A106 Grade B 415MPa 240MPa
A106 Grade C 485MPa 275MPa



CHEMICAL COMPOSITION

Element Carbon,C Manganese,Mn Ohosphorous,P Sulfur,S
A106 Grade A 0.25% 0.27~0.29% 0.035% 0.035%
A106 Grade B 0.30% 0.29~1.06% 0.035% 0.035%
A106 Grade C 0.35% 0.29~1.06% 0.035% 0.035%



PLEASE NOTE

For each reduction of 0.01% for maximum carbon element, an increase of 0.06% manganese above the specified value shall be permitted, and up to maximum of 1.35%.
Elements Cr, Cu, Mo, Ni, V combined shall not exceed 1%.
