Astm A192 / A192m Seamless Carbon Steel Boiler Tubes For High Pressure Service
| Place of Origin | Shandong China |
|---|---|
| Brand Name | TESTE |
| Certification | ISO TUV SGS BIS CE |
| Minimum Order Quantity | 3Tons |
| Price | Negotiate |
| Packaging Details | With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles. |
| Delivery Time | 5-15days depend on the quantity |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA |
| Supply Ability | 5000Tons Per Months |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Carbon Steel Pipe | Standard | ASTM A192 / A192M |
|---|---|---|---|
| Type | Seamless Pipe(SMLS) | Pipe End | Plain End,Beveled End,Treaded |
| Product Name | Seamless Carbon Steel Pipe | Hight Light | . |
| High Light | . | ||
| High Light | astm seamless carbon steel boiler tubes,a192m seamless carbon steel boiler tubes,high pressure service cs seamless pipe |
||
Product Description

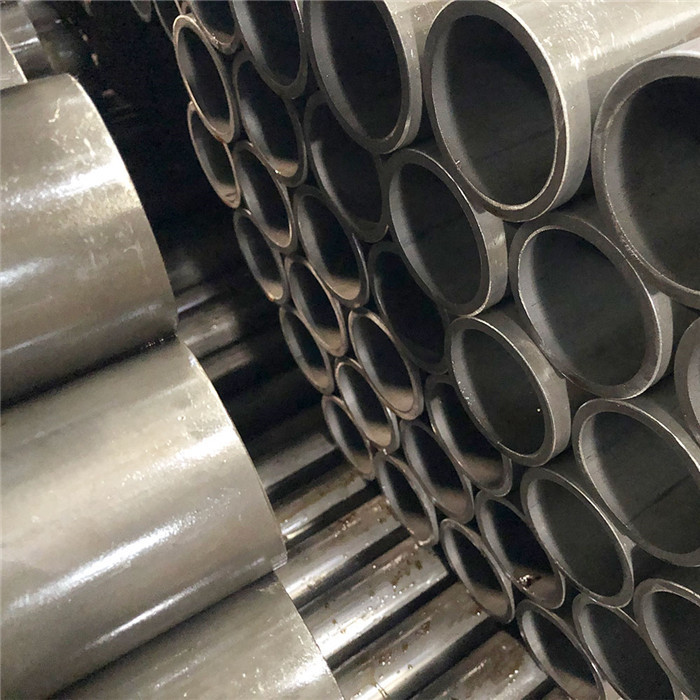

ASTM A192 / A192M Seamless Carbon Steel Boiler Tubes for High-Pressure Service
ASTM A 192 boiler tube equivalent EN 10216-2, DIN 17175, BS 3059 Part II, NF A 49-213, NBR 5594 ASTM (American Society for Testing Materials standard) A192 and ASME (American Society of Mechanical Engineers standards) SA192. Equivalent Materials 1010, St35.8, 360. FASTWELL has standard specifications for minimum-wall-thickness, seamless carbon steel boiler and super heater tubes for high-pressure service.
The standard specification of SA 192 tube below shows the weight of each and every component present in this material to improve its compatibility.
ASTM A192 TUBES MECHANICAL PROPERTIES
| Seamless&Welded | Tensile Strength | Yield Strength |
|
ASTM A192 |
325MPa |
180MPa |
ASTM A192 TUBES CHEMICAL COMPOSITION
| Element | Carbon,C | Manganese,Mn | Ohosphorous,P | Sulfur,S |
| ASTM A192 | 0.06~018% | 0.27-0.63% | 0.035% | 0.025% |
Testing Requirements for seamless ASTM Q179/SA179 carbon steel pipe
(1)Hydrostatic Testing:
Inspection test pressures produce a stress in the pipe wall equal to 60% of specified minimum yield strength (SMYS) at room temperature. Maximum pressures are not to exceed 2,500 psi for NPS 3 and under, and 2,800 psi for the larger sizes. Pressure is maintained for no less than 5 seconds.
(2)Mechanical Tests:
Tensile Test: Either transverse or longitudinal are acceptable for NPS 8 and larger
Tensile tests smaller than NPS 8: Longitudinal testing only
Flattening Test: NPS 2 and larger
Bending Test (cold): NPS 2 and under
MATERIAL SPECIFICATION REQUIREMENTS FOR A SPECIFIC ORDER
- When we place a specific order for SA 179 tubing, we should include below material specifications:
- Standard and the name of material: ASTM A179 / ASME SA 179 seamless tubes.
- Manufacturing types in cold drawn
- Quantity in meters, feet, or pieces.
- Size including Diameters and minimum wall thickness
- Length per pieces (Random or fixed length shall be specified)
- Chemical composition (optional)
CARBON STEEL PIPE STANDARD AND GRADES(SEAMLESS AND WELDED)
- ASTM A106 Gr. B in Seamless (Differences between ASTM A106 and A53 pipe)
- ASTM A53 Gr. A, B in Seamless, Welded ERW, and Zinc coated, hot-dipped galvanized steel pipe
- ASTM A179 Gr. C in Seamless (For seamless cold drawn low carbon steel heat-exchanger and condenser tubes)
- ASTM A192 (For seamless carbon steel boiler tubes for high-pressure service)
- ASTM A252 (For welded and seamless steel pipe piles)
- ASTM A333 GR. 1, 2, 3, 4, 5, 6 (For seamless and welded steel pipe for low-temperature service and other applications with required notch toughness)
- ASTM A134 and ASTM A135 (For electric resistance welded ERW steel pipes)
- API 5L Pipe, ISO 3183 / API 5L Gr. A, B, X42, X46, X52, X56, X60, X65, X70, X80 in seamless and welded (LSAW, SSAW, ERW) steel pipe, for petroleum and natural gas industries, steel pipe for pipeline transportation systems.
- DIN 2440 seamless and welded steel pipes applies to medium-weight tubes suitable for screwing. (DIN2444 Zinc coated steel tubes, for hot galvanizing)
- CSZ Z245 Seamless and ERW welded pipe (low-frequency electric welded pipe excluded), SAW steel pipe that intended for oil and gas pipeline systems.
- NBR 8261 Cold-Drawn, Cold-form, welded steel pipe, in circular cross-section, square or rectangular, applied to structural purposes.
- AWWA C-200 for steel water pipe
More standards material available in case special requirement
