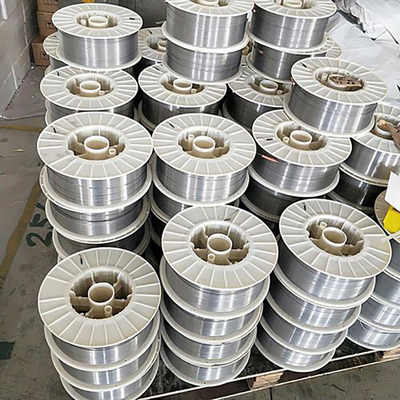

5Kg Stainless Steel MIG Wire Rod ER316LSi 0.9mm Anodized

Place of Origin Shandong China
Brand Name TESTE
Certification ISO TUV SGS BIS CE
Minimum Order Quantity 3Tons
Price Negotiate
Packaging Details With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time 5-15days depend on the quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability 5000Tons Per Months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Stainless Steel Welding Wire Grade ER316LSi
Wire Weight 1kg / 5kg / 15kg / 150kg / 250kg Wire Size(mm) 0.8mm / 0.9mm / 1.0mm / 1.2mm/ 1.6mm/ 2.0mm
Wire Size(in) 0.25 / 0.30 /0.35 / 0.40 / 0.45 / 0.030 Package Spool - Drum
Product Name Stainless Steel Wire Rod High Light .
High Light Pipe Product Name Stainless Steel
Name Pipe
High Light

anodized Stainless Steel MIG Wire

,

ER316LSi Stainless Steel MIG Wire

,

0.9mm Stainless Steel MIG Wire

Leave a Message
Product Description

ER316LSi Stainless Steel Welding Wire



ER316LSi Stainless Steel Welding Wire is also known as H03Cr19Ni12Mo2Si1 stainless steel wire, is an ultra-low carbon stainless steel MIG welding material, and its deposited metal is ultra low carbon type. Because of the addition of Si, the fluidity is better, the shape is more beautiful, the arc is stable, the spatter is little, and the excellent comprehensive mechanical properties are obtained.

  • ER316LSi GMAW (MIG) welding alloy welding stainless steel mig welding wire

  • Designed for welding heat treatable base alloys

  • Higher melting point and more fluidity

  • Suitable for sustained elevated temperature service

  • All position, include vertical down welding

  • Gray - white(post anodized) color

STAINLESS STEEL SPRING WIRE GRADE

European Standards

EN 10088-3

Designation USA   Japan
  Grades Designation AISI-ASTM-SAE UNS
AUSTENITIC GRADES 1.4301 X5CrNi8-10 304 S30400 304
1.431 X10CrNi18-8 302 S30200 302
1.4305 X8CrNiS18-9 303 S30300S 303
1.4306 X2CrNi19-11 304L - -
1.4303 X4CrNi18-9 305 S30600 305
1.4307 X2CrNi18-9 304L S30403 304L
1.4401 X5CrNiMo17-12-2 316 S31600 316
1.4404 X2CrNiMo17-12-2 316L S31603 316L
1.4541 X5CrNiTi18-10 321 S32100 321
1.4567 X3CrNiCu18-9-4 302HQ-304Cu S30430 XM7
1.457 X6CrNiCuS18-9-2 - - -
1.4571 X6CrNiMoTi17-12-2 316Ti S31635 316Ti
1.4597 X8CrMnCuNB17-8-3 204Cu - -
1.4539 X1NiCrMoCu25-20-5 904L NO8904 -
REFRACTORY GRADES 1.4841 X15CrNiSi25-21 314 S31400 -
1.4845 X8CrNi25-21 310-310S S31000 SUH310
FERRITIC GRADES 1.4016 X6Cr 17 430 S43000 430
1.4104 X14CrMoS17 430F S43020 430F
1.4509 X2CrTiNb18 441 S44100 441
1.451 X3CrTi17 439/XM8 S43035 -
1.4511 X3CrNb17 430Cb - -
1.4512 X2CrTi12 409 S40920 -
MARTENSITIC GRADES 1.4005 X12CrS13 416 S41600 416
1.4034 X46Cr13 420C - -
1.4021 X20Cr13 420A S4200 -
1.4035 X46CrS13 - - -



ER316LSi CHEMICAL COMPOSITION--Standard:AWS A 5.9 YB/T5092

Element C Mn Si P S Cr Ni Mo Cu Ti Nb
ER308LSi 0.03% 1.0~2.5% 0.65~1.00% 0.03% 0.03% 19.5~22% 9~11% 0.75% 0.75% - -
ER304 0.08% 1.0~2.5% 0.06% 0.03% 0.03% 17~19% 8~11% - - - -
ER321 0.08% 1.0~2.5% 0.3~0.65% 0.03% 0.03% 18.5~20.5% 9~10.5% 0.75% - 9×C–1.00 -
ER309L 0.03% 1.0~2.5% 0.3~0.65% 0.03% 0.03% 23~25% 12~14% 0.75% 0.75% - -
ER307Si 0.04~0.14% 6.5~8.0% 0.65~1.0% 0.03% 0.03% 18.5~22% 8~10.75% 0.75% 0.75% - -
ER347 0.08% 1.0~2.5% 0.3~0.65% 0.03% 0.03% 19~21.5% 9~11% 0.75% - - 10×C–1.0
ER316LSi 0.03% 1.0~2.5% 0.65~1.0% 0.03% 0.03% 18~20% 11~14% 2~3% 0.75% - -
ER410 0.12% 0.6% 0.5% 0.03% 0.03% 11.5~13.5% 0.6% 0.75% 0.75% - -
ER430 0.10% 0.6% 0.5% 0.03% 0.03% 15.5~17% 0.6% 0.75% 0.75% - -
ER310 0.08~0.15% 1.0~2.5% 0.3~0.65% 0.03% 0.03% 25~28% 20~22.5% 0.75% 0.75% - -
ER2209 0.03% 0.5~2.0% 0.9% 0.03% 0.03% 21.5~23.5% 7.5~9.5% 0.75% - - -



ER410 Stainless Steel Welding Wire Specifications

Type Spool (MIG) Tube (TIG)

Specification

( MM )

0.8,0.9,1.0,1.2,1.6,2.0 1.6,2.0,2.4,3.2,4.0,5.0
Package

S100/1kg S200/5kg

S270,S300/15kg-20kg

5kg/box 10kg/box length :1000MM
Mechanical Properties Tensile Strength Mpa Elongation after fracture A(%)
≥ 530 ≥ 30
Diameter(MM) 0.8 1.0 1.2 1.6 2.0 2.5 3.2
Current(A) 70 ~ 150 100 ~ 200 140 ~ 220 50 ~ 100 100 ~ 200 200 ~ 300 300 ~ 400



ER316LSi Stainless Steel Welding Wire FAQ



Stainless Steel MIG welding wire have how many types?

ER304,ER307Si,ER308,ER308L,ER308LSi,ER309,ER309L,ER309LSi,ER310,ER316,ER316L,ER316LSi,ER321,ER347,ER410,

ER430,ER2209,317l



How to choose a suitable gasless mig welding stainless steel wire?or what type of filler wire is best for wire feed welding stainless steel?



The first two designators may be“ER”for solid wires that may be used as electrodes or rodsor they may be“EC’for composite cored or stranded wires;or they may be“EQ”for strip electrodes.

The three- or four-digit number,such as 308 in ER308,designates the nominal chemical composition of the filler metal.

  • ER307.The nominal composition(wt.%)of this classification is 21 Cr.9.5Ni.4 Mn.1 Mo.Filler metals .

  • ER308The nominal composition(wt.%)of this classification is 21 Cr10 Ni.Commercial specifications is most often used to weld base metals of similar composition, in particular, Type 304.

  • ER308Si.This classification is the same asER308except for the higher silicon content.

  • ER308H.This classification is the same as ER308.except that the allowable carbon content is used for welding 304H base metal.

  • ER308L.This classification is the same as ER308,except for the carbon content.Low carbon,is less than that of the niobium-stabilized alloys or Type 308H at elevated temperatures.

  • ER308LMo.This classification is used for welding ASTM CF3M stainless steel castings and matches the base metal with ER316L is desired.

  • ER309.The nominal composition(wt.%)of this classification is 24 Cr13 Ni.Filler metals.

  • 304 and similar base metals where severe corrosion conditions exist requiring higher alloy weld metal.

  • ER309Si.This classification is the same as ER309,except for higher silicon content.

  • ER309L.This classification is the same as ER39,except for the carbon content.

  • ER309LS.This classification is the same as ER309Lexcent for higher sillicon content.

  • ER309Mo.This classification is the same as ER309except for the addition of 2.0 percent to 3.0 percent.

  • ER310.The nominal composition(wt.%)of this classification is 26.5 Cr,21 Ni.Filler metal of this classification is most often used to weld base metals of similar composition

  • ER312.The nominal composition(wt.%) of this classification is 30 Cr, 9 Ni.Filler metal of this classification was originally designed to weld cast alloys of similar composition.

  • ER316 weld metal may occur when the following three factors co-exist:

The presence of a continuous or semicontinuous network of ferrite in the weld metal microstructurel

  • ER316Si.This classification is the same as ER316,except for the higher silicon content.

  • ER316H.This filler metal is the same as ER316,except that the allowable carbon .

  • ER316L.This classification is the same as ER316.except for the carbon content.

  • ER316LSi.This classification is the same as ER316L except for the higher silicon content.

  • ER317.The nominal composition(wt.%) of this classification is 19.5 Cr14 Ni3.5 Mo, higher than ER316.

  • ER317LThis classification is the same as ER317except for the carbon content.

  • ER318This composition is identical to ER316,except for the addition of niobium.

  • ER321Thenominal composition(wt.%)of this classification is 19.5 Cr.9.5 Niwith titanium added.The titanium acts in the same way as niobium in Type 347.

  • ER347.The nominalcomposition(wt.%) of this classification is 20 Cr,10 Ni,with Nb added as a stabilizer.

  • ER347Si.This classification is the same as ER347,except for the higher silicon content.

  • ER409.This 12 Cr alloy(wt.%) differs from Tvpe 410 material because it has a ferritic microstructure.

  • ER410.This 12 Cralloy(wt.%) is an air-hardening steel.

  • ER410NiMo.The nominal composition(wt.%)of this classification is 12 Cr4.5 Ni.0.55 Mo.

  • ER430.This is a 16 Cr(wt.%) alloy.The composition is balanced by providing sufficient chromium to give adequate corrosion resistance for the usual applications.

  • ER439.This is an 18 Cr(wt.%) alloy that is stabilized with titanium.
