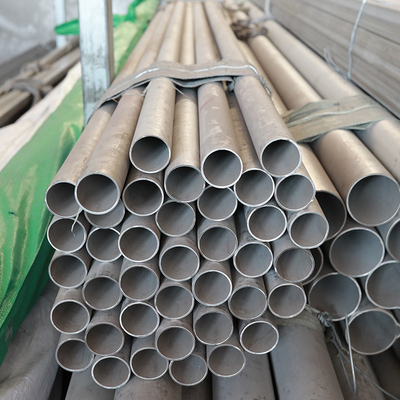

Schedule 80 Seamless Stainless Steel Pipe 310 317 316Ti Astm A269 Tp316l A270 Sanitary Tubing

Place of Origin Jiangsu, China
Certification ISO9001, CE
Minimum Order Quantity 1 pcs
Delivery Time 7~10working days
Payment Terms L/C, T/T
Supply Ability 5000 Ton/Tons per Month
Product Details
Product Name Stainless Steel Round Pipe Technique Cold Rolled,Hot Rolled
Type Seamless Pipe(SMLS) Surface No.1,2D,2B,BA,No.4,8k,Tempered
High Light

310 stainless steel pipe

,

317 stainless steel pipe

,

316ti stainless steel pipe

Leave a Message
Product Description

Grade 316Ti SMLS Stainless Steel Seamless Pipe

316Ti (1.4571) SEAMLESS&WELDED PIPE



316Ti (UNS S31635) is a titanium stabilised version of 316 molybdenum-bearing austenitic stainless steel.

The 316 alloys are more resistant to general corrosion and pitting/crevice corrosion than the conventional chromium-nickel austenitic stainless steels such as 304. They also offer higher creep, stress-rupture and tensile strength at elevated temperature. High carbon Alloy 316 stainless steel can be susceptible to sensitisation, the formation of grain boundary chromium carbides at temperatures between approximately 900 and 1500°F (425 to 815°C) which can result in intergranular corrosion. Resistance to sensitisation is achieved in Alloy 316Ti with titanium additions to stabilise the structure against chromium carbide precipitation, which is the source of sensitisation. This stabilisation is achieved by an intermediate temperature heat treatment, during which the titanium reacts with carbon to form titanium carbides. This significantly reduces susceptibility to sensitisation in service by limiting the formation of chromium carbides. Thus, the alloy can be used for extended periods at elevated temperatures without compromising its corrosion resistance. 316Ti has equvilent corrosion resistance to sensitisation as the low carbon version 316L.

STOCKING PROGRAM

  • Size Range : 1/4″ ~ 36″ NPS (Larger sizes available upon request)
  • Schedules : 10, 10s, 40, 40s, 80, 80s, 120, 160 (Custom wall thicknesses available upon request)
  • Stainless Steel Grades : 304, 304L, 316, 316L, 316L, 317L, 321 , 347
  • Special Alloys : 2205, 254SMo, Monel, Inconel
  • Chrome Moly : P5, P9, P11, P22, P91
  • Standards :  ASTM / ASME

CHEMICAL COMPOSITION

Element C Mn Si P S Cr Ni N Ti
316 0.07% 2.0% 1.00% 0.045% 0.03% 16.5~18.5% 10.0~13.0% 0.11% -
316L 0.03% 2.0% 1.00% 0.045% 0.02% 16.5~18.5% 10.0~13.0% 0.11% -
316LN 0.03% 2.0% 1.00% 0.045% 0.015% 16.5~18.5% 10.0~12.5% 0.12~0.22% -
316Ti 0.08% 2.0% 0.75% 0.045% 0.03% 16.0~18.0% 10.0~14.0% 0.10% 5x%(C+N)~0.70%



MECHANICAL PROPERTIES

Grade

Tensile Strength

(MPa)



Yield Strength

(MPa)Min



Density

(g/cm3)

Brinell

(HB)Max

316 500~700 200 8 215
316L 520~680 220 8 215
316LN 580~780 205 8 220
316Ti 515Min 205 8 209



ADVANTAGES OF WELDED

  • Welded pipes are typically more cost effective than their seamless equivalents.
  • Welded pipes are usually more readily available than seamless. The longer lead time required for seamless pipes can not only make timing problematic, but it also allows more time for the price of the materials to fluctuate.
  • The wall thickness of welded pipes is generally more consistent than that of seamless pipes.
  • The internal surface of welded tubes can be checked before manufacturing, which isn’t possible with seamless.

ADVANTAGES OF WELDED

  • The main perceived advantage of seamless pipes is that they don’t have a weld seam.
  • Seamless pipes provide peace of mind. Although there should be no issues with the seams of welded pipes supplied by reputable manufacturers, seamless pipes prevent any possibility of a weak seam.
  • Seamless pipes have better ovality or roundness, than welded pipes.
