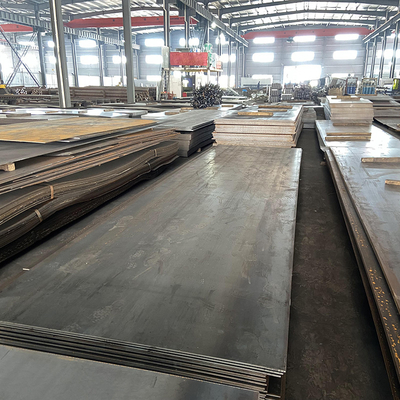

HR Carbon Steel Boiler Plate Sa 516 SA515 Grade 60 65 70

  • HR Carbon Steel Boiler Plate Sa 516 SA515 Grade 60 65 70
  • HR Carbon Steel Boiler Plate Sa 516 SA515 Grade 60 65 70
  • HR Carbon Steel Boiler Plate Sa 516 SA515 Grade 60 65 70
  • HR Carbon Steel Boiler Plate Sa 516 SA515 Grade 60 65 70
Place of Origin Jiangsu,China
Certification ISO 9001 ,CE
Minimum Order Quantity 1 PCS
Delivery Time 7~10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Boiler Steel Plate Delivery Conditon HR,CR,AR,Q+T,N+T,N,TMCP,UT,Z Direction
Thickness 6mm~200mm Width 2000mm/2200mm/2500mm
Length 9000mm~12000mm
High Light

steel sa 516

,

sa 516 gr 70 plates

,

sa 515 gr 65
Leave a Message
Product Description
astm a515 Boiler sTEEL plate

ASTM A515 standard is mainly used for carbon-silicon steel plates for medium and high temperature welding boilers and other pressure vessels.



GRADE

Type Grade Standard Application
Steel plates for boilers and pressure vessels

Q245R/20g,Q345R

(S)A299M
(S)A515M(Gr.60,65,70)
(S)A204M(Gr.A,B,C)
(S)A387M(Gr.11,12,22)
(S)A537M(GL.1,CL.2)
(S)A662M(Gr.A.B,C)
(S)A302M(Gr.A,B,C,D)
(S)A737M(Gr.B,C)
(S)A738M(Gr.A,B,C)
(S)A533M(,I)
P235GH,P265GH,P295GH
P355GH,16Mo3,13CrMo4-5
...

ASTM,ASME,DIN,JIS,GB

 Widely used in petroleum, chemical, power station, boiler and other industries, used to make reactors, heat exchangers, separators, spherical tanks, oil and gas tanks, liquefied gas tanks, nuclear reactor pressure shells, boiler drums, liquefied petroleum gas cylinders, Equipment and components such as high-pressure water pipes and turbine volutes of hydropower stations.



EQUIVALENT GRADE OF A515 GRADE 60

ASTM/ASME DIN JIS China
A515 Gr60 DIN1715  1.0425 JIS G3103 SB410 GB713  20G(Q245R)
A515 Gr65 DIN1715  1.0435 JIS G3103 SB450 GB713 22G
A515 Gr70 DIN1715 1.0844 JIS G3103 SB480 -



CHEMICAL COMPOSITION

Element Carbon,C Copper,Cu Iron,Fe Manganese,Mn Ohosphorous,P Silicon,Si Sulfur,S
A515 Gr60 0.24~0.31% - - 0.90%Max 0.035%Max - 0.035%Max
A515 Gr65 0.28~0.33% - - 0.90%Max 0.035%Max - 0.035%Max
A515 Gr70 0.31~0.35% - - 1.20%Max 0.035%Max - 0.035%Max



Where is Boiler Steel Plate Used?

  • Industrial boilers
  • Domestic hot water storage tanks
  • Compressed air storage tanks
  • Aircraft passenger cabins
  • Petrochemical storage tanks
  • Transport tanks​

Delivery status: According to the user's requirements, it can be delivered in different states such as hot rolling, normalizing, tempering, normalizing and tempering, and quenching and tempering.


Execution standard: According to the user's requirements, delivery can be made according to the following standards: national standards, metallurgical industry standards, American ASTM, ASME standards, Japanese JIS, German DIN, British BS,European EN, international ISO standards and related standards for special boards, etc.


Quality level: A, B, C, D, E and thickness direction Z15, Z25, Z35.


Flaw detection standard: according to China (JB4730, GB/T2970), the United States (A435, A577, A588), Japan (JISG0801, JISG0901), Germany (SEL072), the United Kingdom(BS5996), France (NFS04-305) and other domestic and foreign flaw detection standards production inspection.



Supplementary Technology :HIC Test | NACE MR0175 | Z15 | Z25 | Z35 | S1 | S2 | S3 | S4.1 | S5 | S6 | S7 | S8 | S9| S11 | S12 | S14 | S17
