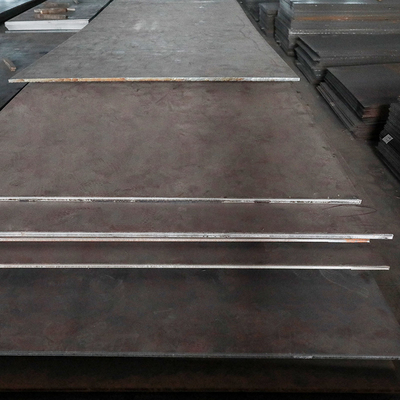

Hot Rolled Shipbuilding Steel Plate Eh36 A131 AH36 DH36 FH36 ABS Grade A

Place of Origin Jiangsu,China
Certification ISO 9001 ,CE
Minimum Order Quantity 1 PCS
Delivery Time 7~10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month
Product Details
Product Name Shipbuilding Steel Sheet Delivery Conditon HR,CR,AR,Q+T,N+T,N,TMCP,UT,Z Direction
Thickness 6mm~90mm Width 1800mm~2500mm
Length 9000mm~13500mm
High Light

shipbuilding steel plate grade a

,

shipbuilding steel plate ISO9001

,

shipbuilding steel plate eh36 A131

Leave a Message
Product Description
ABS A131 AH36/DH36/EH36/FH36 SHIPBILDING STEEL SHEET

Higher-strength ABS shipbuilding steel comes in six grades and two strengths. Kloeckner Metals routinely stocks AH36, DH36, EH36, and FH36.



GRADE

Type Grade Standard Application
Steel plate for shipbuilding and oil production platform

A,B,D,E(Z15,Z25,Z35)
AH32-FH32(Z15,Z25,Z35)AH36-FH36(Z15,Z25,Z35)
D40,E40
AP1SPEC 2H Gr42,Gr50

CCS,DNV,GL, LR,BV,ABS NK,KR,RINA GB5313
API

It is used to make ship hulls, offshore oil production platforms, platform pipe joints and other structural parts.





CHEMICAL COMPOSITION

Element Carbon,C Iron,Fe Manganese,Mn Ohosphorous,P Sulfur,S
Content 0.42~0.50% 98.51~98.98% 0.60~0.90% 0.040%Max 0.05%Max





Delivery status: According to the user's requirements, it can be delivered in different states such as hot rolling, normalizing, tempering, normalizing and tempering, and quenching and tempering.


Execution standard: According to the user's requirements, delivery can be made according to the following standards: national standards, metallurgical industry standards, American ASTM, ASME standards, Japanese JIS, German DIN, British BS,European EN, international ISO standards and related standards for special boards, etc.


Quality level: A, B, C, D, E and thickness direction Z15, Z25, Z35.


Flaw detection standard: according to China (JB4730, GB/T2970), the United States (A435, A577, A588), Japan (JISG0801, JISG0901), Germany (SEL072), the United Kingdom(BS5996), France (NFS04-305) and other domestic and foreign flaw detection standards production inspection.



How strong are the superior-strength ABS steels?

The ABS 32 grades, including AH32, DH32, and EH32, have a yield strength of 45,500 psi (315 MPa) and the 36 grades, including AH36, DH36, and EH36, have a yield strength of 51,000 psi (355 Mpa). The ultimate tensile strength of the 32 grades is 64,000 – 85,000 psi (440 – 590 MPa) and for the 36 grades it is 71,000 – 90,000 psi (490 – 620 MPa).

In comparison, ABS A & B are defined as ordinary strength and have specified yield points of 34,000 psi (235 MPa) and ultimate tensile strengths of 36,000 – 71,000 psi (400 – 490 MPa).

However, there are exceptions for greater thicknesses and certain sections.
