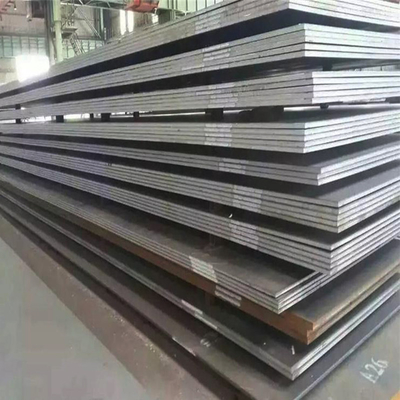

S235JR Hot Rolled Carbon Steel Plate Astm A283 Grade C 8x4 Mild Steel Sheet Metal 2mm

Place of Origin Jiangsu,China
Certification ISO 9001 ,CE
Minimum Order Quantity 1 PCS
Delivery Time 7~10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month
Product Details
Product Name Carbon Steel Plate Delivery Conditon HR,CR,AR,Q+T,N+T,N,TMCP,UT,Z Direction
Thickness 4mm~400mm Width 1500mm/2200mm/2500mm
Length 4000-12000mm
High Light

s235jr steel plate 1.0347

,

astm a283 grade c plate 1.0347

,

astm a283c SPCD 1.0347

Leave a Message
Product Description
Astm a283 CARBON STEEL PLATE

A283 Grade C is a kind of common carbon steel material with low or mid-low tensile . They are four grades or levels in the standard ASTM A283,they are GR A/B/C/D.carbon structural steel plate A283 Grade C are mainly used in heavy industry and oil plants for built steel tanks and vessels.It is good in welding and economic for useage.



EQUIVALENT GRADE OF ASTM 283 Grade C

ASTM

Germany DIN

China GB

Japan JIS

A36 ST37-2 Q235 SS400



CHEMICAL COMPOSITION

Element Carbon,C Copper,Cu Manganese,Mn Ohosphorous,P Silicon,Si Sulfur,S
A283 Grade A 0.14%Max 0.20%Max 0.90%Max 0.035%Max 0.15~0.40% 0.04%Max
A283 Grade B 0.17%Max 0.20%Max 0.90%Max 0.035%Max 0.15~0.40% 0.04%Max
A283 Grade C 0.24%Max 0.20%Max 0.90%Max 0.035%Max 0.15~0.40% 0.04%Max
A283 Grade D 0.27%Max 0.20%Max 0.90%Max 0.035%Max 0.15~0.40% 0.04%Max



HEAT TREATMENT

It can be heat treated at the following temperatures:

  • Normalizing at 899°C – 954°C (1650°F-1750°F)
  • Annealing at 843°C – 871°C (1550°F-1600°F)
  • Stress relieving at 677°C – 927°C (1250°F-1700°F)
  • Carburizing at 899°C – 927°C (1650°F-1700°F)
  • Hardening at 788°C – 816°C (1450°F-1500°F)
