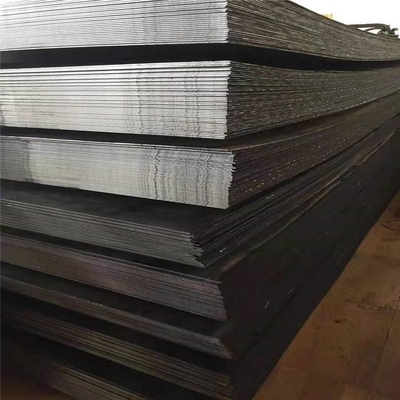

1018 Cold Rolled Carbon Steel Plate For Cooking Sheet DC03 1.0347 High Drawing SPCD

Place of Origin Jiangsu,China
Certification ISO 9001 ,CE
Minimum Order Quantity 1 PCS
Delivery Time 7~10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month
Product Details
Product Name Cold Rolled Carbon Steel Plate Delivery Conditon HR,CR,AR,Q+T,N+T,N,TMCP,UT,Z Direction
Thickness 0.3mm~3.2mm Width 1000mm/1250mm/1500mm
High Light

1018 cold rolled steel plate 1.0347

,

cold rolled carbon steel sheet SPCD 1.0347

,

cold rolled carbon steel plate SPCD 1.0347

Leave a Message
Product Description
spcD / en 10139 gRADE dc03(1.0347) CARBON STEEL plate

Grade DC03 exhibits excellent deep-drawing capability under all types of deformation. This grade is suitable for forming requirements such as deep drawing and difficult profiling.



DC03 Meaning and Definition
D: (Drawing) flat products for cold forming
C: Cold rolled
DC01(1.0330 material): Drawing quality
DC03(1.0347 material): Deep drawing quality;
DC04(1.0338), DC05(1.0312): Special deepdrawing quality;
DC06(1.0873 material): Extra deepdrawing quality;
DC07(1.0898 material): Super deep drawing quality.



Carbon cold rolled steel coils and strips are produced with a highly adaptable manufacturing process, which are extensively used in automobile, washing machines, refrigerators, electrical appliances and steel office equipment. By varying the percentage in carbon steel, it is possible to produce steel with a variety of different qualities.



EQUIVALENT GRADE OF DC01

USA AISI

Germany DIN

China GB /T5213

Japan JIS G3141

A619 DC03(1.0347) 1006 SPCD



CHEMICAL COMPOSITION

Element C Mn P S Si
DC01 0.12% 0.60% 0.045%  0.045% -
DC04 0.08% 0.40% 0.03% 0.03% -
DC05 0.06% 0.35% 0.025% 0.025% 0.03%
DC06 0.02% 0.25% 0.020% 0.020% 0.03%


COMMON GRADE OF COLD ROLLED CARBON STEEL

Standard  Grade

EN 10130

DC01,DC03,DC04,DC05,DC06,DC07

EN 10209

DC01EK,DC04EK,DC06EK,DC03ED,DC04ED,DC06ED

ASTM A1008 / A1008M

CS,DS,DDS,EDDS,SFS
DIN 1623

st12,st13,st14,st15,

JIS G3141

SPCC,SPCD,SPCE

... ...
