SAE AISI 1008 1045 1095 1045 Low Carbon Steel Flat Bar CS Bar

Place of Origin Jiangsu,China
Certification ISO 9001 ,CE
Minimum Order Quantity 1 PCS
Delivery Time 7~10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month
Product Details
Product Name Carbon Steel Flat Bar Thickness ≥3mm
Delivery Condition Annealing,Normalized,Quench+Temper Surface Black Finish,Peeled,Rough Turned
High Light

1045 steel flat bar

,

1095 carbon steel flat bar

,

1045 flat bar

Leave a Message
Product Description

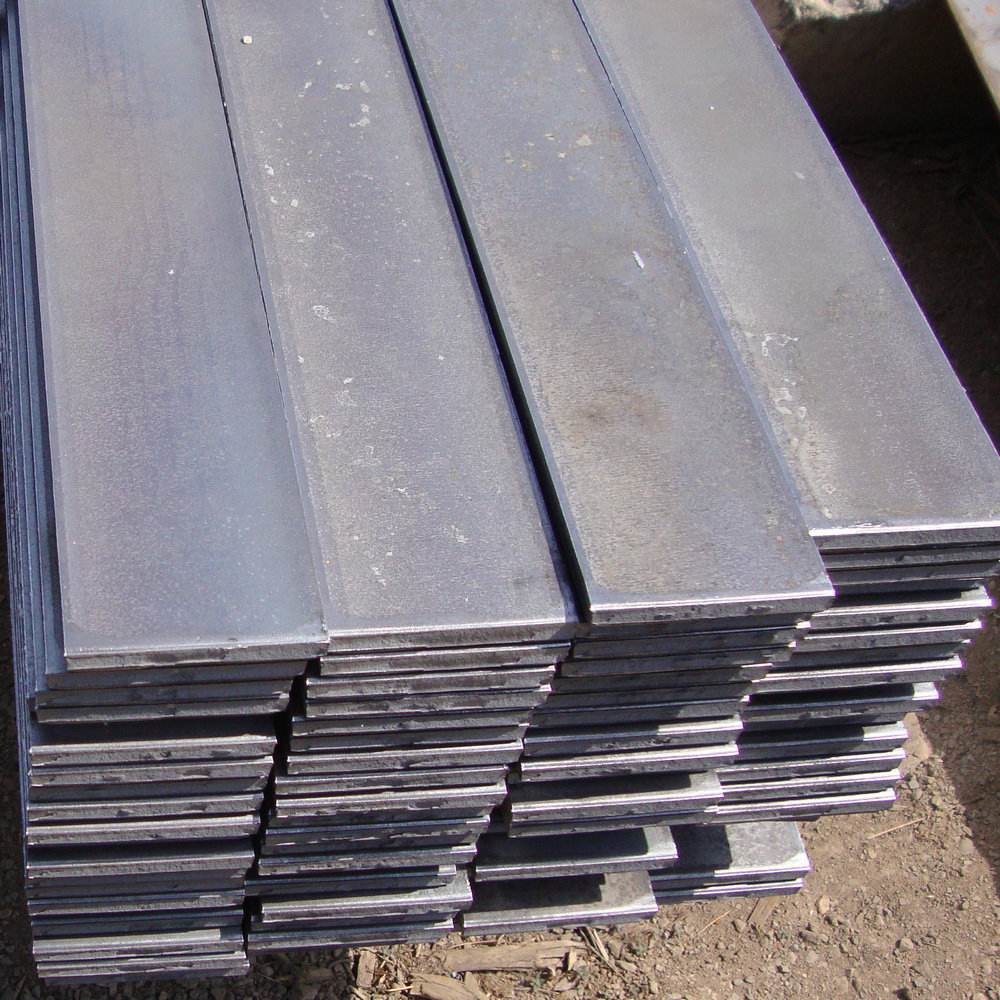

CARBON STEEL flat bar

Mild Steel Flat Bar is a versatile product commonly used in fabrication. With a flat surface and square edge, Sizing is represented as Width x Thickness, for example 40 x 25 = (45 mm Wide x 25mm Thick).



1008 steel round bar is comprised of low carbon steel, which allows for ease of formability. Because it is low carbon and produces lower mechanical properties, 1008 steel bar is typically used in less critical applications such as threaded rod and concrete stakes. 1008 cold drawn steel bar offers greater strength due to its increased mechanical properties.



Product can be purchased in individual lengths or as a bundle and we can also cut to length.



GRADE

AISI

AISI 1008   AISI 1015   AISI 1017   AISI 1021   AISI 1025

AISI 1026   AISI 1035   AISI 1045   AISI 1050   AISI 1055

ASTM

SAE 1006   SAE 1008   SAE 1010  SAE 1020  SAE 1030

    SAE 1030   SAE 1035   SAE 1040   SAE 1045

JIS SCM415  SCM420  SCM440   SS400   S45C   S20C
GB Q195   Q215  Q235



SIZE

Size(mm) Weight(kg/m) Length(m)
10 × 3 0.24 ≥4
13 × 3 0.31 ≥4
13 × 5 0.51 ≥4
13 × 6 0.61 ≥4
16 × 3 0.38 ≥4
16 × 5 0.63 ≥4
... ... ...



EQUIVALENT GRADE OF 1008

EN Germany DIN IS Japan JIS
2A C10 C5 SWRCH8A



CHEMICAL COMPOSITION

Element C Mn P S
1006 0.08% Max 0.25~0.40% 0.04%Max 0.05%Max
1008 0.10%Max 0.30~0.50% 0.04%Max 0.05%Max
1010 0.08~0.13% 0.30~0.60% 0.04%Max 0.05%Max
1020 0.18~0.23% 0.30~0.60% 0.04%Max 0.05%Max
1025 0.22~0.28% 0.30~0.60% 0.04%Max 0.05%Max
1045 0.43~0.50% 0.60~0.90% 0.04%Max 0.05%Max



HEAT TREATMENT

It can be heat treated at the following temperatures:

  • Normalizing at 899°C – 954°C (1650°F-1750°F)
  • Annealing at 843°C – 871°C (1550°F-1600°F)
  • Stress relieving at 677°C – 927°C (1250°F-1700°F)
  • Carburizing at 899°C – 927°C (1650°F-1700°F)
  • Hardening at 788°C – 816°C (1450°F-1500°F)
